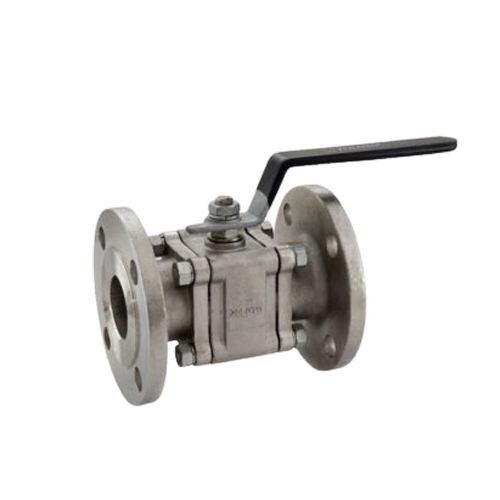

3 Piece Flanged End Ball Valve

Get a Price/Quote

MOQ : 1 Piece

3 Piece Flanged End Ball Valve Specification

Caliber
Full Bore

Channels
2/2 way

Structure
3 Piece, Full Bore

Pressure
BODY: 425 psig (30 kg/cm2) @ 150#, 1100 psig (77 kg/cm2) @ 300# SEAT: 300 psig (21 kg/cm2) @ 150#, 800 psig (56 kg/cm2) @ 300#

Connection
Flanged

Material
INVESTMENT CASTING IC CF8-304/IC CF8M-SS316/IC CF3-SS 304L/IC CF3M-SS316L, CS A216 WCB

Power
Manual, Gear, Pneumatic, or Electric Actuated

Media
Water, Oil, Gas, Steam, Chemicals

Temperature of Media
-20C to 200C (typical with PTFE seat)

Port Size
12 NB to 200 NB (1/2 to 8)

Flange
ASA 150# / ASA 300#

Finish
Machined / Shot Blasted

Application
Industrial, Chemical, Oil & Gas, Water supply

Ball Material
AISI 304, 316 series

Antistatic Device
Available

Manufacturing Standard
BS 5351, API 602

Corrosion Resistance
High

Mounting Pad
ISO 5211 compliant

Seat Material
PTFE/RPTFE/Glassfilled PTFE/CFT

End Type
Flanged connection

Design
Three piece construction

Stem Material
AISI 304/316 series

Locking Device
Yes

Color
Metallic Silver

Body Material
CF8, CF8M, WCB

Fire Safe Design
Available

Operation Handle
Lever, Gear, Actuated

Ball Type
Solid/Hollow

Servicing
Easy inline maintenance

Blowout Proof Stem
Yes

Handle Cover
PVC Sleeve

Testing Standard
BS 6755

Seal Material
PTFE variants

3 Piece Flanged End Ball Valve Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Week

Delivery Time
2-5 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About 3 Piece Flanged End Ball Valve

Introducing our trending 3 Piece Flanged End Ball Valve, a top-tier choice for industrial applications requiring pristine flow control. This best-seller showcases lofty engineering with robust body options in CF8, CF8M, and WCB, and premium AISI 304/316 series for both the ball and stem. Designed to international standards (BS 5351, API 602), it ensures high corrosion resistance and fire-safe operation. The valve features a solid/hollow ball, full bore caliber, and offers easy in-line maintenance. Engineered for excellence, it's ideal for oil, gas, chemical, and water systems.

Versatile Industrial Applications

The 3 Piece Flanged End Ball Valve is extensively used by process engineers and plant operators as a reliable shutoff solution across diverse sectors. Serving as a primary isolation valve, it's leveraged in water supply, chemical processing, oil & gas fields, and steam systems. Its high compatibility with media such as water, oil, gas, chemicals, and steam elevates operational efficiency in stringent industrial environments.

Comprehensive Packaging & Fast Delivery

Every ball valve is dispatched from India's major FOB ports, with exports supported by robust transportation and transport services. We offer express shipping for urgent requirements, and sample units are available upon request. Packaging is handled with precision, using sturdy cartons or custom-wrapped wooden cases to ensure pristine condition upon arrival, providing peace of mind during international and domestic transit.

FAQ's of 3 Piece Flanged End Ball Valve:

Q: How is the 3 Piece Flanged End Ball Valve used in industrial applications?

A: The valve is used as a primary shutoff and flow control device in various industries such as oil & gas, water supply, chemical processing, and steam systems, handling a wide spectrum of media effectively.

Q: What materials are available for the body and internal components?

A: Body options include CF8, CF8M, and WCB, while the ball and stem are crafted from AISI 304/316 series. Seat and seal materials comprise PTFE variants, providing corrosion resistance and durability.

Q: When should I consider choosing a three-piece design over other ball valves?

A: A three-piece design is beneficial when frequent maintenance or inline servicing is required, as it allows easy disassembly without removing the valve from the pipeline, saving operational downtime.

Q: Where are these valves manufactured and exported from?

A: Our valves are manufactured in India and exported globally, with major shipments dispatched from renowned Indian ports. This ensures reliable transport services and express shipping internationally.

Q: What benefits does the valve's fire-safe and antistatic features provide?

A: The fire-safe and antistatic features enhance operational safety, minimizing risks associated with flammable media and static electricity buildup, making them suitable for critical and hazardous environments.
